PREMIUM ANODISED RACE KART AXLE KIT
COLOUR OF EACH COMPONENT CAN BE SELECTED USING THE DROP DOWN BOXES ABOVE.
Premium CPR Performance Billet Alloy Hubs designed for racing purposes. CPR Precision Race Go Kart Components offer unbeatable value and dependable durability with a design and finish to impress even the fussiest race karters.
CPR Race Axle Assemblies have been crafted to suit high horsepower, high G-Force racing – both dirt and bitumen. Our kits are the perfect replacement for damaged or worn rear axle assemblies, or to upgrade an older or smaller setup to meet modern demands.
Not only are CPR Race Axle Assemblies high quality, but they also represent outstanding value for money. When you replace or add a CPR kit, you’ll have access to replacement parts at unbeatable value into the future.
*New Model – Suits 2 stroke & 4 stroke kart applications.
40mm AXLE ASSEMBLY. EVERYTHING you need to bolt-on and go less the axle shaft – including ALL the nuts and bolts WITH ANODISED COUNTERSUNK WASHERS!
CPR Products represent premium value for money. CPR components are manufactured from premium Billet alloy to conform with stringent quality control designed to provide strong and safe parts for go kart racing. Look closely at the parts in the pictures and you’ll notice CPR components are anodised beautifully in several impressive colours, matching compnents supplied with them (like our gorgeous anodised countersunk washers). Your kart will look awesome with a CPR part fitted, but more importantly your new CPR parts will last the distance – just like you expect.
Just have a look at our feedback – you’ll see we care about you and want to ensure that you get excatly what you expect, quickly each and every time. We also go that extra mile for you and ship your goods super quickly. Check out our testimonials – you’ll see that our customers are always happy, and always get their stuff fast!
High Quality anodised parts.

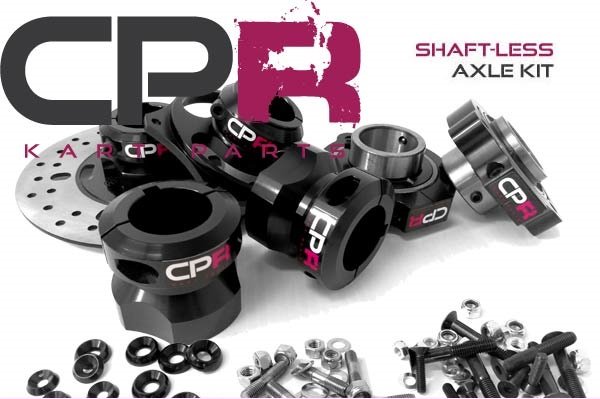

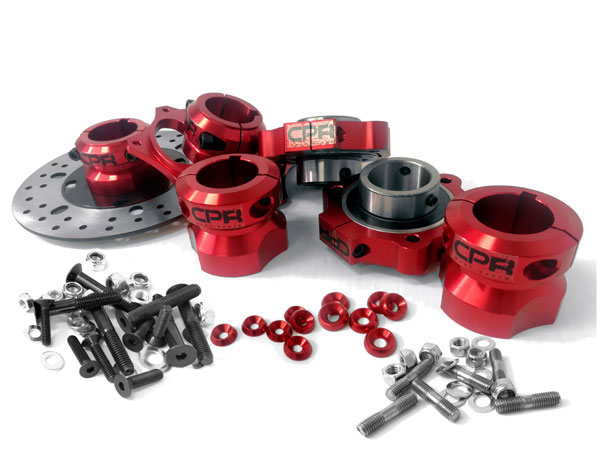

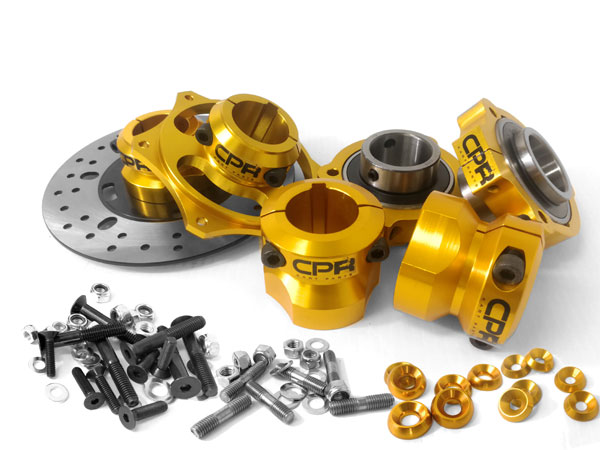

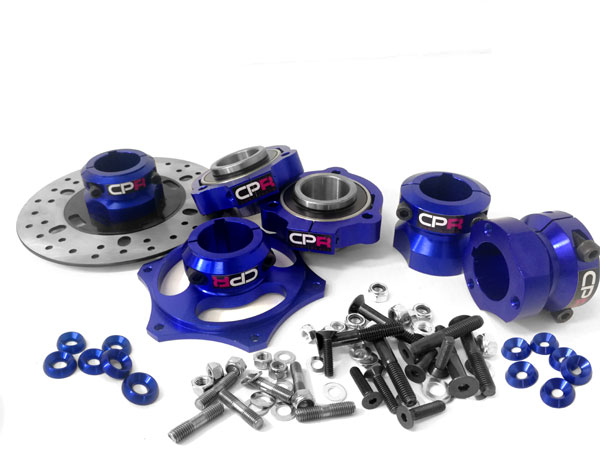

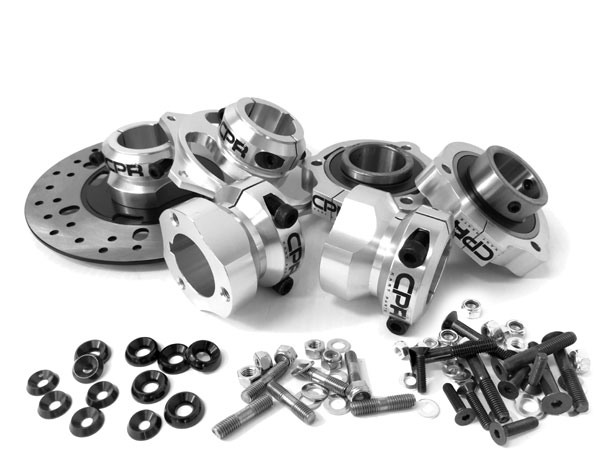

INCLUDES:
1x 40mm Anodised Brake Hub
1x Drilled Brake Disc
1x 40mm Anodised Sprocket Carrier/Hub
2x 40mm Low Friction Sealed Bearings
2x 40mm Anodised Self-aligning bearing carriers
2x 40mm Anodised Wheel Hubs
PLUS
ALSO INCLUDES OVER $75 OF FREE STUFF! – The following nuts, bolts, and fixations:
3x Bolts, washers & 2x Square Head High Tensile bolts for Brake Hub ($8)
6x ANODISED Countersunk Washers, 6x Countersunk High Tensile bolts, 6x Washers, 6x Nyloc nuts, 2x High tensile bolts for Sprocket Carrier ($24)
6x ANODISED Countersunk Washers, 6x Countersunk High Tensile bolts, 6x Washers, 6x Nyloc nuts, 2x High tensile square head bolts and 2x nuts for Bearing Carriers. ($28)
6x Studs, 6x Washers, 6x Nylocs, 2x High Tensile Square Head bolts for Wheel Hubs. ($16)
SPECIFICATIONS:
AXLE
NOT INLCUDED
Please note from batch to batch the measurements above may be slightly different.
BRAKE DISC
Brake Disc Thickness @ 4.5mm
Brake Disc Diameter @ 190mm
BEARINGS
40mm low friction free-spin bearings
Twin grub screws & locating pins
BEARING CARRIERS
Self-Aligning Bearing Flange/Holder/Cradle complete with 40mm Low Friction Race Bearing installed.
Holes are set 78mm apart from each other and 45mm from the centre.
WHEEL HUBS
8mm Keyway
Length: 60mm
Studs, washers & nuts included – standard thread
SPROCKET HUB
8mm Keyway
Holes are set 67mm apart from each other and 67mm from the centre (Suit Standard 219 or 35 pitch Sprocket).
This quality part matches our other anodised items.
Designed for most brands of go karts.
