40mm Bearing & Flange Carrier Holder Red

40mm Bearing & Flange Carrier Holder Red - Image 2

SKU: BHBC40R Category: 40mm Bearings & Carriers

40mm Bearing & Flange Carrier Holder Red

Name: 40mm Bearing &amp; Flange Carrier Holder Red
SKU: BHBC40R
Availability: InStock

$69.90

Free Shipping for this item

Premium CPR Performance Billet Alloy Hubs and Carriers designed for racing purposes. CPR Precision Race Go Kart Components offer unbeatable value and dependable durability with a design and finish to impress even the fussiest race karters.

COLOUR AS PER TITLE & PICTURES

Self-Aligning Bearing Flange/Holder/Cradle complete with 40mm Low Friction Race Bearing installed.

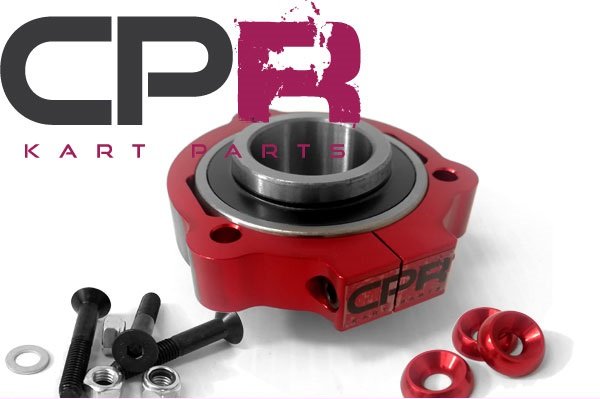

Includes full fixing kit comprising of:

1x Bearing

1x Bearing hanger (carrier/holder)

3x Countersunk High Tensile Bolts

3x Nylocs and washers

3x ANODISED countersunk machined aluminium washers in colour as shown.

Cassette/Hanger/Holder dimensions:

Holes are set 78mm apart from each other and 45mm from the centre.

Thickness – 20mm

Height from bottom of hanger to top of hanger total 110mm

Height of centre of bottom hole to bottom of hanger 10mm

Height of top holes from bottom of hanger ~80mm

This quality part matches our other anodised items.

Designed for most brands of go karts.

Go Kart Countersunk Washer 8mmID Red NEW × 3
40mm Bearing × 1
Go Kart Countersunk Bolt M8 50mm long High Tensile NEW with Nyloc & Washer × 3
40mm Bearing Carrier Only Red (Not for Individual Sale) × 1

Go Kart Countersunk Washer 8mmID Red NEW:

A = 8mm (Inner Diameter - fits 8mm Screw/Bolts)
B = 22mm (Outer Diameter)
C = 6mm (Thickness/Depth)
40mm Bearing:

A (outer diameter) = 80mm

B (Sleeve protrusion) = 19mm

C (width of bearing) = 21mm

D (Sleeve protrusion) = 8mm

E (Locator) = YES

F (Sleeve outer diameter) = 53mm

G (Inner diameter / axle shaft size) = 40mm

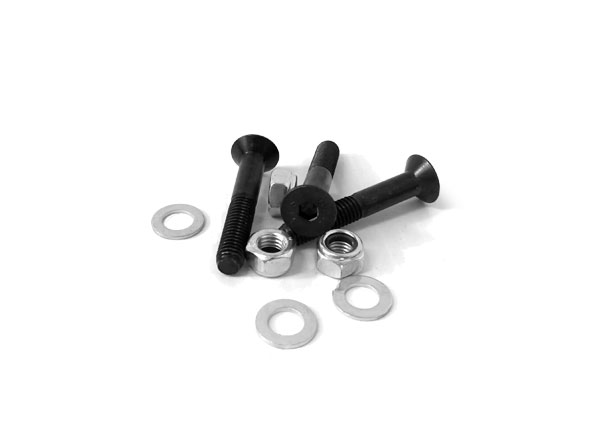

Go Kart Countersunk Bolt M8 50mm long High Tensile NEW with Nyloc & Washer:

D = 8mm

L = As per title
40mm Bearing Carrier Only Red (Not for Individual Sale):

A = 110mm (Height from bottom of hanger to top of hanger total)

B = 20mm (Thickness of hanger is 20mm (5mm per side can be removed if required by linishing/filing/cutting for thin hanger brackets))

C = 100mm (Width of hanger - widest part to widest part)

D = 78mm (Holes are set 78mm apart from each other) and 45mm from the centre of the bearing.

E = 10mm (Height of centre of bottom hole to bottom of hanger or distance from centre of side hole to side of hanger)
F = 80mm (Height of top holes from bottom of hanger)
