Premium CPR Performance Billet Alloy Hubs designed for racing purposes. CPR Precision Race Go Kart Components offer unbeatable value and dependable durability with a design and finish to impress even the fussiest race karters.
CPR Race Axle Assemblies have been crafted to suit high horsepower, high G-Force racing – both dirt and bitumen. Our kits are the perfect replacement for damaged or worn rear axle assemblies, or to upgrade an older or smaller setup to meet modern demands.
Not only are CPR Race Axle Assemblies high quality, but they also represent outstanding value for money. When you replace or add a CPR kit, you’ll have access to replacement parts at unbeatable value into the future.
This is the new model. It suits 2 stroke and 4 stroke karts.

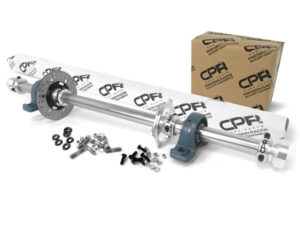

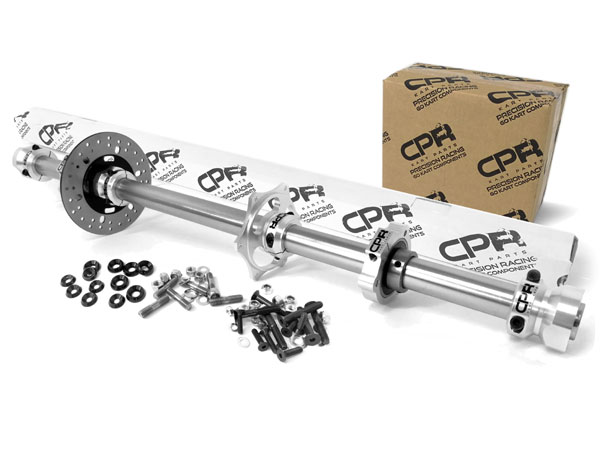

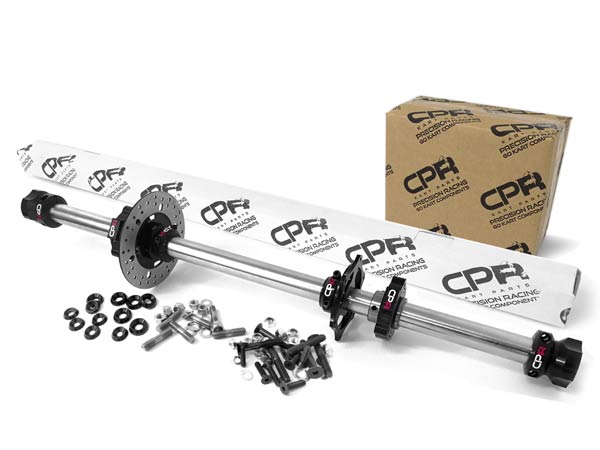

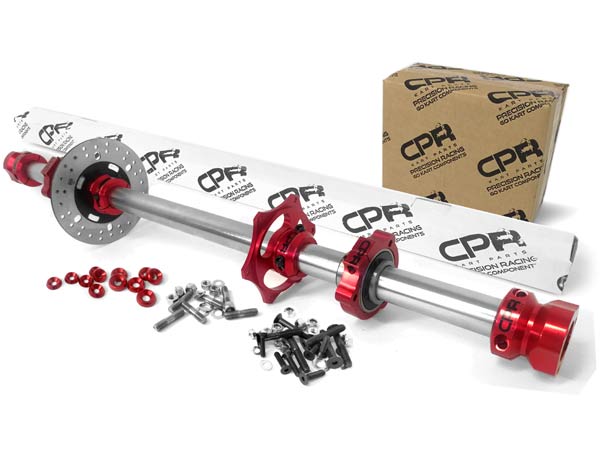

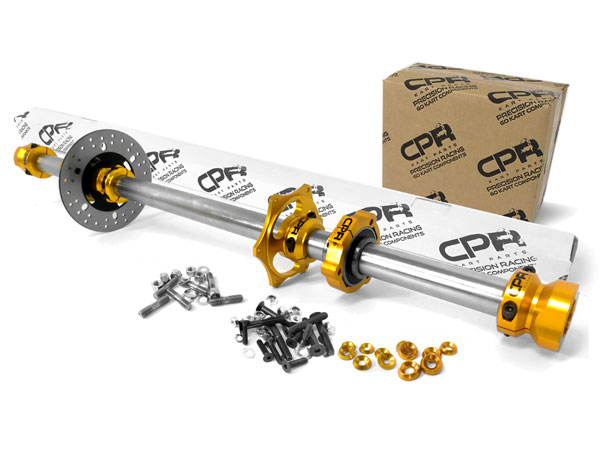

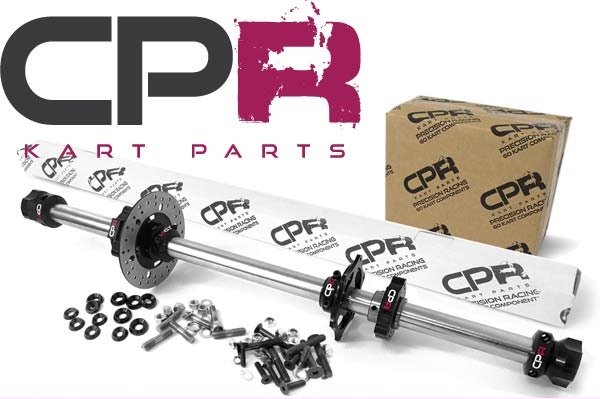

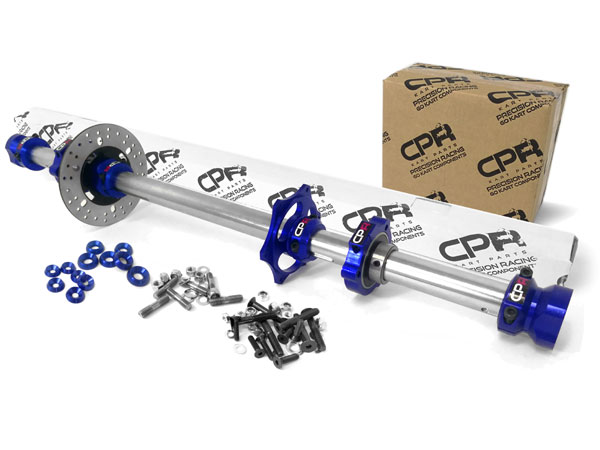

COMPLETE 40mm AXLE ASSEMBLY. EVERYTHING you need to bolt-on and go – including ALL the nuts and bolts WITH ANODISED COUNTERSUNK WASHERS!
High Quality anodised parts.
Colour: COMPONENTS AS PER DROP-DOWN BOXES ABOVE

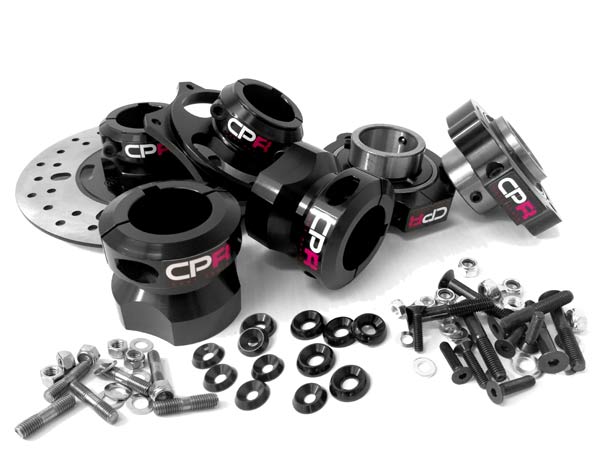

INCLUDES:
1x 40mm Axle Shaft

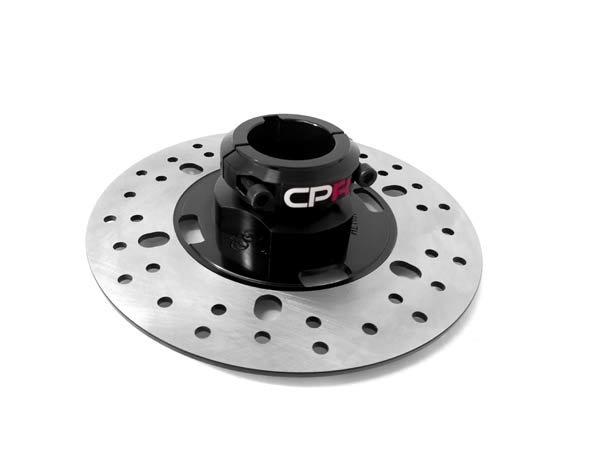

1x 40mm Anodised Brake Hub
1x Drilled Brake Disc
1x 40mm Anodised Sprocket Carrier/Hub
2x 40mm Low Friction Sealed Bearings
2x 40mm Anodised Self-aligning bearing carriers
2x 40mm Anodised Wheel Hubs
PLUS
ALSO INCLUDES the following nuts, bolts, and fixations:

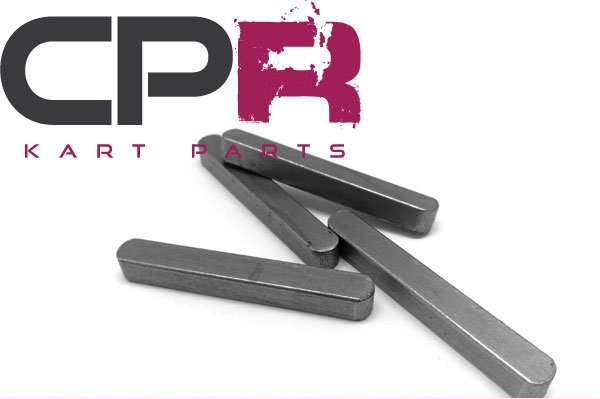

4x Axle Keys cut to fit exact lengths of keyways
3x Bolts, washers & 2x Square Head High Tensile bolts for Brake Hub
6x ANODISED Countersunk Washers, 6x Countersunk High Tensile bolts, 6x Washers, 6x Nyloc nuts, 2x High tensile bolts for Sprocket Carrier
6x ANODISED Countersunk Washers, 6x Countersunk High Tensile bolts, 6x Washers, 6x Nyloc nuts, 2x High tensile square head bolts and 2x nuts for Bearing Carriers.
6x Studs, 6x Washers, 6x Nylocs, 2x High Tensile Square Head bolts for Wheel Hubs.
SPECIFICATIONS:

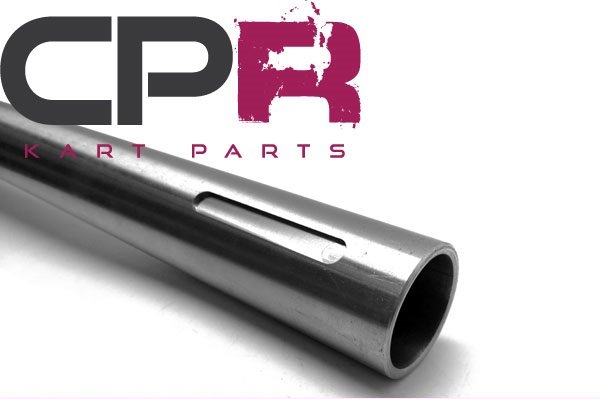

AXLE
Comes with 4x Keys
AXLE
Axle Diameter: 40mm
Axle wall thickness: 4.5mm
Axle Length: 1047mm (~1050mm)
Keyway width: 8mm

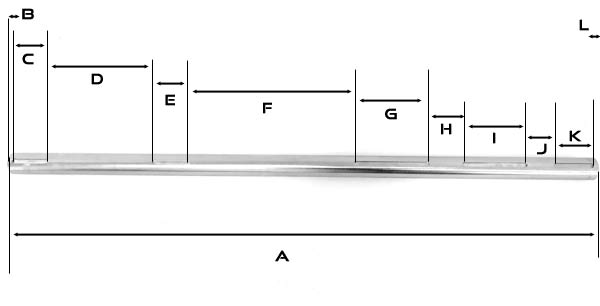

Keyway locations: from end to end
A = 1047mm (~1050mm)
B = ~10mm
C = ~65mm (Keyway position from end of shaft ~10mm -> ~75mm)
D = ~192mm
E = ~65mm (Keyway position from end of shaft ~267mm -> ~332mm)
F = ~296mm
G = ~130mm (Keyway position from end of shaft ~628mm -> ~758mm)
H = ~58mm
I = ~111mm (Keyway position from end of shaft ~816mm -> ~927mm)
J = ~46mm
K = ~65mm ( ~973mm -> ~1038mm)
L = ~10mm
Please note from batch to batch the measurements above may be slightly different.
BRAKE DISC
Brake Disc Thickness @ 4.5mm
Brake Disc Diameter @ 190mm
BEARINGS
40mm low friction free-spin bearings
Twin grub screws & locating pins

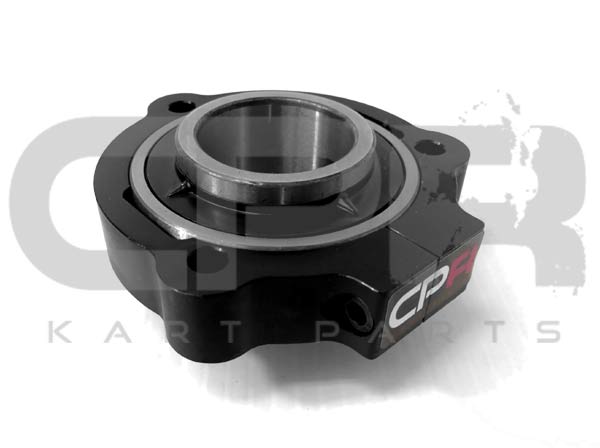

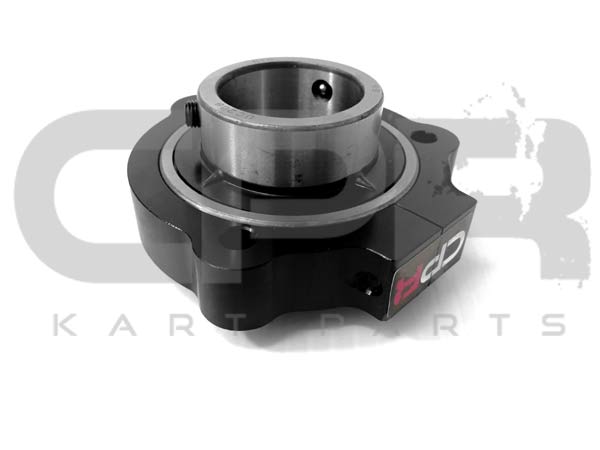

BEARING CARRIERS
Self-Aligning Bearing Flange/Holder/Cradle complete with 40mm Low Friction Race Bearing installed.
Holes are set 78mm apart from each other and 45mm from the centre.
Thickness of hanger is 20mm (5mm per side can be removed if required by linishing/filing/cutting for thin hanger brackets)
Height from bottom of hanger to top of hanger total 110mm
Height of centre of bottom hole to bottom of hanger 10mm
Height of top holes from bottom of hanger ~80mm

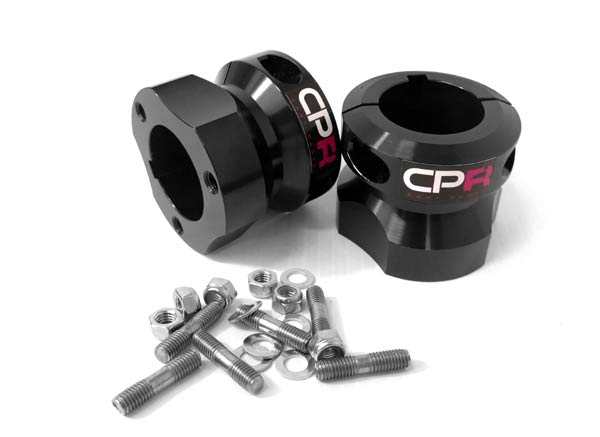

WHEEL HUBS
8mm Keyway
Length: 60mm
PCD 50mm x 3 (Holes are set 50mm apart from each other and 29mm from the centre – Suit Standard Rear Wheels).
Studs, washers & nuts included – standard thread

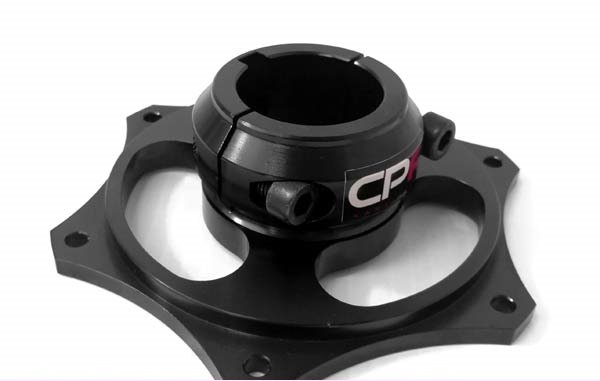

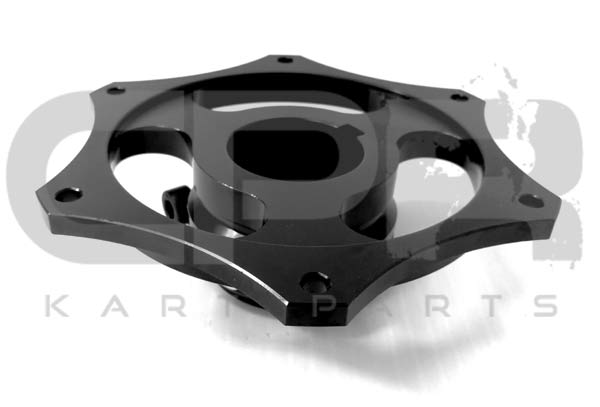

SPROCKET HUB
8mm Keyway
Holes are set 67mm apart from each other and 67mm from the centre (Suit Standard 219 or 35 pitch Sprocket).
PCD Diameter = (6x) 132mm (centre of 6mm holes on opposite sides of sprocket)
Suits standard kart sprockets (Inner Sprocket Diameter 116mm)
This quality part matches our other anodised items.
Designed for most brands of go karts.
