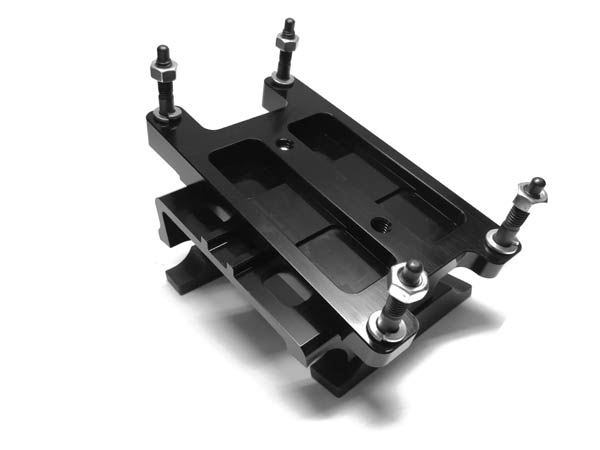

Fully Adjustable Anodised Billet engine mounting system. (lateral position adjustment)
15 degree angled.
Suits 90 or 92mm rail centre to centre and 28-32mm tubes.
The perfect mount for switching to 4-stroke engines (threaded holes designed for Honda GX200/160 and clone engines as well as Briggs/Vangard ~200cc 6-6.5hp engines including World Formula, Animal etc.
*NOTE FOR TORINI CLUBMAXX OWNERS: When using with Torini Clubmaxx adapter plate (torque plate) the adapter plate needs 4 extra holes to be drilled to suit. The adapter plate is mandatory in 4SS classes. The torini clubmaxx will mount directly onto our billet mount without the adapter without modification or any additional hardware.

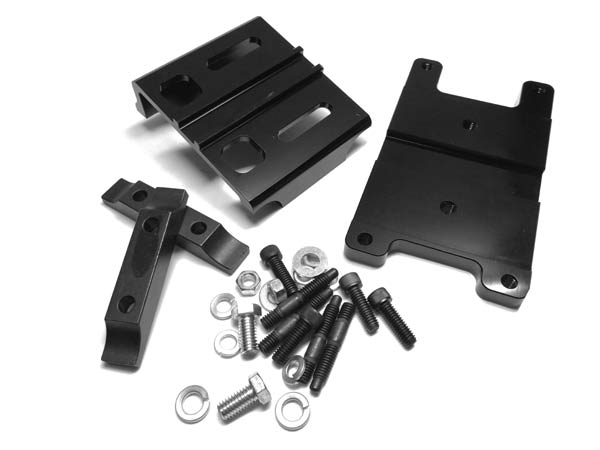

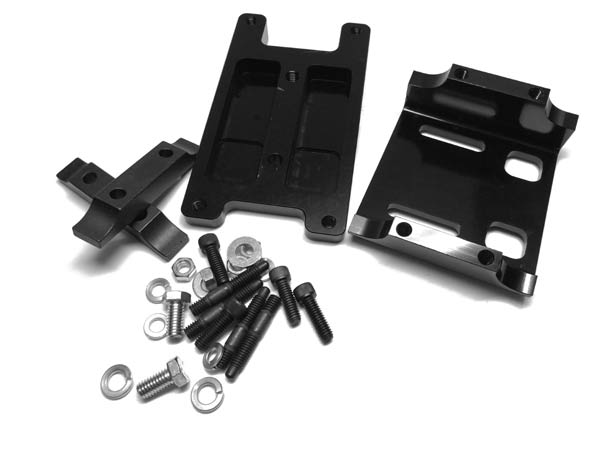

Complete top, middle and bottom brackets with all required bolts.

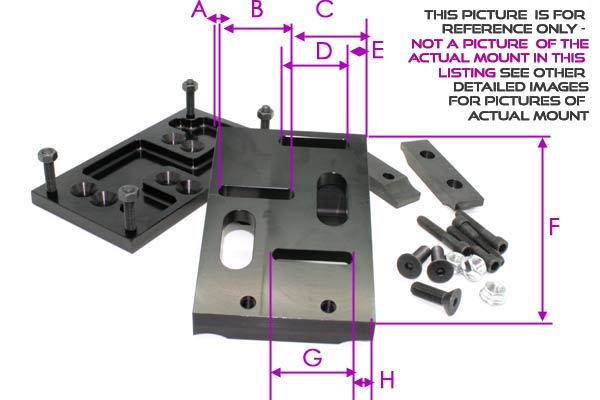

*PICTURE WITH DIMENSIONS IS ACTUALLY A DIFFERENT MODEL – FOR REFERENCE PURPOSES ONLY*
Dimensions:
A (Side edge to centre outer slot edge) – ~15mm
B (Centre Slot Length) – ~45mm
C (Centre Slot edge to other side of plate edge) – ~45mm
Total width of top plate – ~100mm
D (Top Slot Length) – ~45mm
E (Side edge to edge of top slot) – ~ 15mm
F (Top Plate length) – ~180mm
G (Bottom Slot Length) ~45mm
H (Distance from edge of bottom slot to nearest side edge) – ~ 15mm
GX200 base is 162mm x 78mm hole centre to hole centre.
