COMPLETE 3/4″ (19.05mm) #35 2:1 Reduction Jackshaft kit.
HAVE YOU GOT BIG WHEELS?
If your vehicle has wheels in excess of 14 inches (350+mm) then even with a Torque Converter you still may be having problems with your gearing being too tall.
DO YOU HAVE:
– CONSTANT BURNT OUT OR SUPER-HOT CLUTCHES?
– BROKEN TORQUE CONVERTER BELTS?
– LABORING ENGINE, NEVER REALLY GETTING UP TO SPEED?
– STRETCHED OR BROKEN CHAINS?
– BENT OR WARPED SPROCKETS?
Then you need to shorten your gear ratio – this kit will do exactly that in one, easy to buy kit!

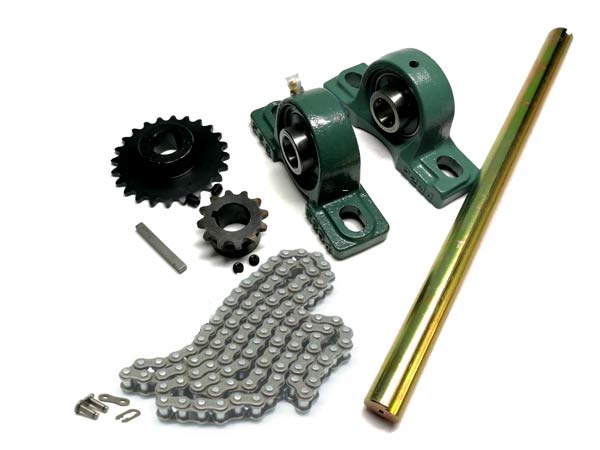

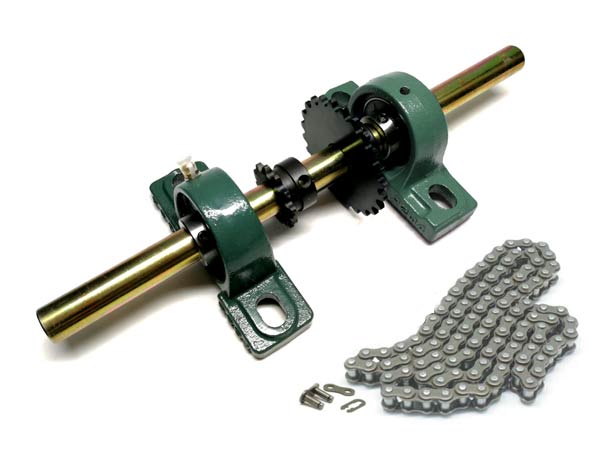

Includes everything required to set up a jackshaft to do a 2:1 reduction on a standard #35 drive transmission. Drive it with the #35 chain in the kit, from a clutch or torque converter.

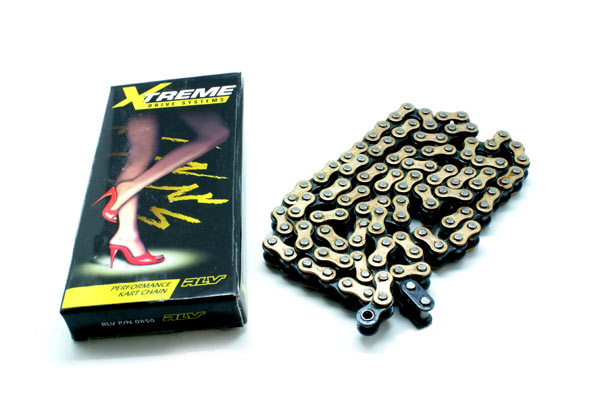

1x RLV 104L COMPETITION CHAIN #35 pitch chain with removable link
1x 12T #35 19.05mm 3/4″ Jackshaft Sprocket with Grub Screws
1x 24T #35 19.05mm 3/4″ Jackshaft Sprocket with Grub Screws
1x 3/4″ Jackshaft (300mm long)
1x Key to suit (40mm long)
2x Bearings
2x Pillow Block housings (Holes are set 95mm apart from each other)
