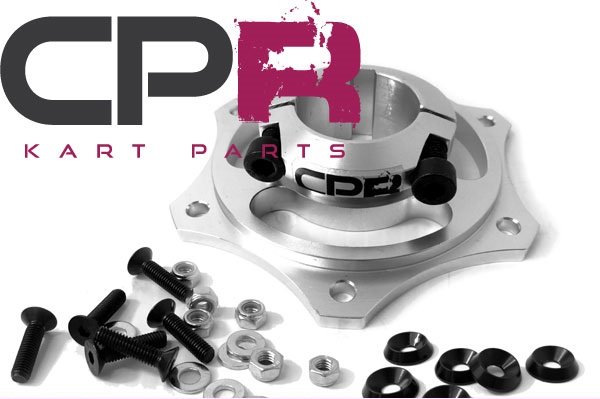

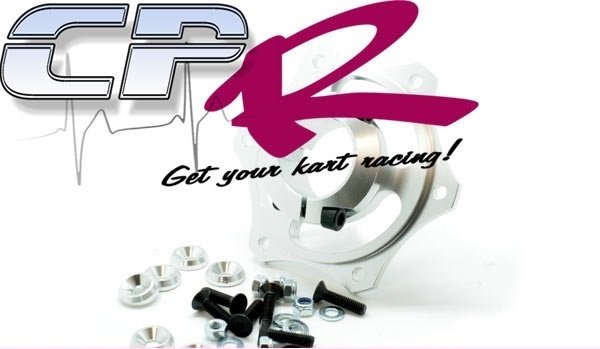

Hub for Brake Disc CNC Billet Silver with Bolt Kit Suit 40mm Axle 8mm Key

Hub for Brake Disc CNC Billet Silver with Bolt Kit Suit 40mm Axle 8mm Key - Image 2

SKU: BHC408S Category: 40mm Brake Hubs

Hub for Brake Disc CNC Billet Silver with Bolt Kit Suit 40mm Axle 8mm Key

Name: Hub for Brake Disc CNC Billet Silver with Bolt Kit Suit 40mm Axle 8mm Key
SKU: BHC408S
Availability: InStock

$94.95

Free Shipping for this item

Brand new Brake Disc Hub / Carrier.

Premium CPR Performance Billet Alloy Hubs designed for racing purposes. CPR Precision Race Go Kart Components offer unbeatable value and dependable durability with a design and finish to impress even the fussiest race karters.

Suits axle diameter: 40mm

Standard Brake Disc PCD – 113.5mm

Standard Brake Disc inner flange 100mm OD.

Keyway size: 8mm

Suits standard 6-Bolt brake disc PCD 113×6 – bolt-to-bolt distance = 56mm

Complete with Anodised Bolt Kit consisting of:

6x M6 High Tensile Bolts, Washers, & Nylocs

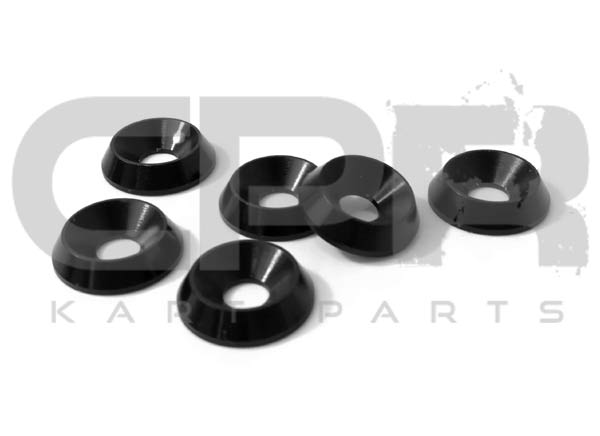

6x Countersunk 6mm ID Washers as pictured

Go Kart Countersunk Washer 6mmID Black NEW × 6
Go Kart Countersunk Bolt M6 25mm long High Tensile NEW with Nyloc & Washer × 6
Hub for Brake Disc CNC Billet Silver Suit 40mm Axle 8mm Key (HUB ONLY NO BOLTS/WASHERS) × 1

Go Kart Countersunk Washer 6mmID Black NEW:

A = 6mm (Inner Diameter - suits 6mm Screws/Bolts)
B = 18mm (Outer Diameter)
C = 4.5mm (Thickness / height)
Go Kart Countersunk Bolt M6 25mm long High Tensile NEW with Nyloc & Washer:

D = 6mm (Suits 6mm Screws/Bolts)

L = As per title
