Pictures to come soon.

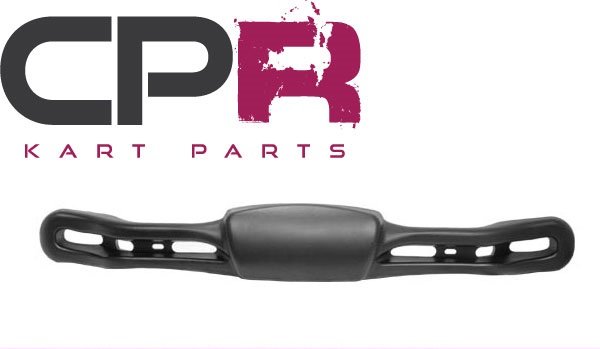

*New Model rear bumper bar. Can be used for both 2 stroke and 4 stroke kart applications.
Protect your rear end from other competitors.
Dimensions
*NOTE: Mounting hole is slotted – 25mm wide ~15mm diameter
A – overall length = 1350mm
B – as per lower picture – inside distance between where the bar sits behind the rear wheels. = ~970mm
C – Mounting holes centre to centre distance = ~700mm
D – Width of each side that sits behind the rear wheels = ~190mm
E – Distance between outermost edge, and centre of mounting hole = ~325mm
F – Distance from outermost extreme (where numbers are fixed) to inside face of the section that sits behind the rear wheels = ~220mm
G – Distance from outermost extreme (where numbers are fixed) to outermost section of main bar = ~80mm
H – Distance from inside face of the section that sits behind the rear wheels to outermost section of main bar = ~140mm
I – Height of bar (total) from lowermost point to highest point = ~170mm
Suitable for senior sized karts.
