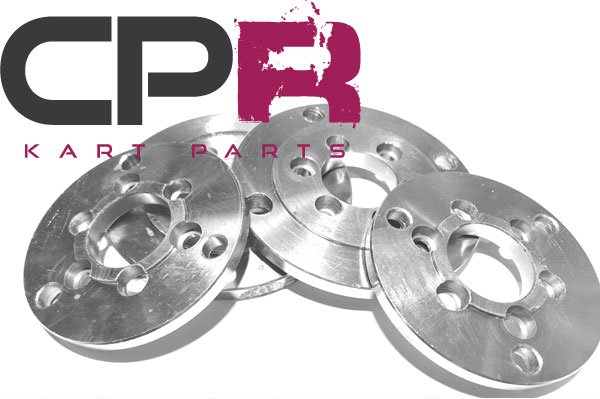

Rear Wheel Hub Adaptor PAIR (Does NOT include wheel hubs – pictured for reference only)
FOUR pieces of adaptors (2x PAIRS) in this set.
1x PAIR 3x 50PCD -> 3x 78PCD
1x PAIR 3x 50PCD -> 4x 110PCD
Thickness 9.5mm with 1.5mm flange
IMPORTANT! When fitting wheels, the adapters need to be fitted to your existing hubs and then the wheels are fitted to the adapters. YOU MUST MAKE SURE ALL BOLTS & SCREWS ARE VERY TIGHT! Loose bolts/screws can cause the hubs and adapters to become loose, which can damage threads in hubs or damage the mounting holes in the wheels – this accelerates wear and will result in complete failure.
Suit all CPR Rear wheel hubs (note, some wheel hubs may need flange removed or machined – these will fit our 40mm axle kits without modification)
2pcs with Holes are set 50mm apart from each other and 29mm from the centre (Suit Standard Rear Wheels) and plate holes are 110mm centre to centre from opposite, or 78mm from each other (110mm x4 PCD)
OD of adaptor is approx. 130mm
Thickness of adaptor is approx 10mm

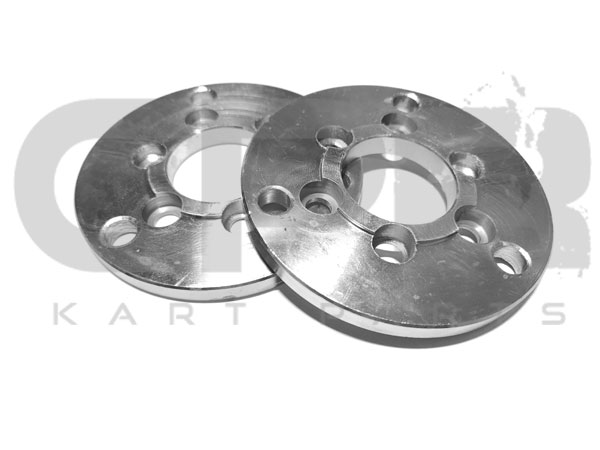

2pcs with Holes are set 50mm apart from each other and 29mm from the centre (Suit Standard Rear Wheels) and plate holes are 78mm from each other (78mm x3 PCD)
OD of adaptor is approx. 107mm
Thickness of adaptor is approx 8mm
Includes Bolts. Ready to bolt-on & go!
Designed for using ATV Style wheels on standard Go Kart hubs.
Designed for most brands of go karts.
