Brake Guard 1 piece *FIT KIT NOT SUPPLIED – No extra fitting bolts are required if your chassis has an axle already installed. Suits 78mm hole centre to hole centre bearing holders.
a. Remove the M8x50 bolt at the top front of the left side bearing and the M8x50 bolt at the top rear of the left side bearing.

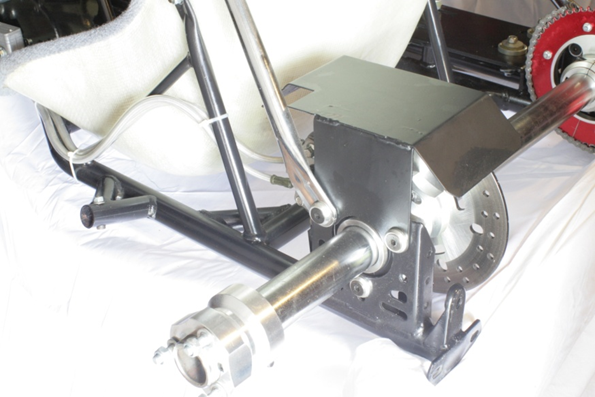

b. Place the Brake Guard in position over the brake with the bracket holes lining up on the outside of the left side bearing bracket.
c. Re-install the two M8x50 bolts.
