Seat Stay Installation. (Left Side Only)
**NOTE: The brake disc cover is not intended to be used with the Seat Stay. If you are using the seat stay do not install the brake disc cover. However, both may be installed if the brake cover is modified.
Seat Stay / Support 1 piece *FIT KIT Axle Fitting Kit

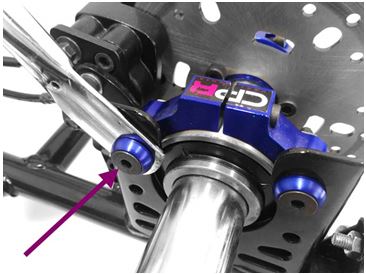

a. Remove the M8x50 bolt at the top front of the left side bearing.

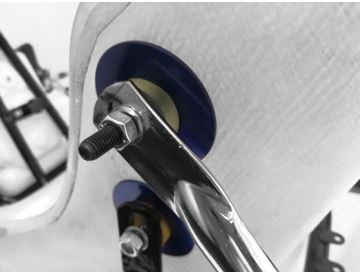

b. Place the seat stay at the outside of the bracket secure using the M8x50 bolt previously removed. Ensure the stays angle in towards the centre of the kart.
This will be attached to the seat once installed later.
