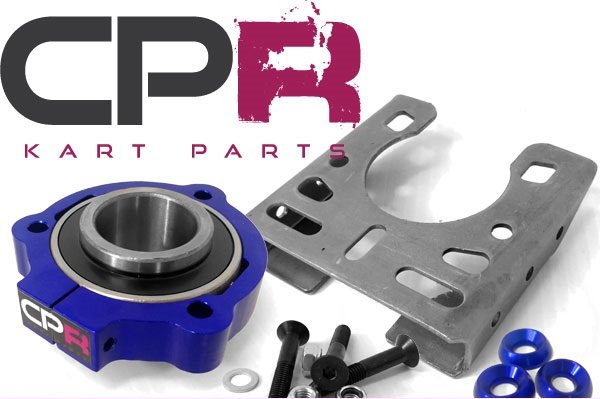

40mm PROJECT Kit Bearing & Flange Carrier Holder PLUS Bracket Blue

40mm PROJECT Kit Bearing & Flange Carrier Holder PLUS Bracket Blue - Image 2

SKU: BHBRC40B Category: 40mm Bearings & Carriers

40mm PROJECT Kit Bearing & Flange Carrier Holder PLUS Bracket Blue

Name: 40mm PROJECT Kit Bearing &amp; Flange Carrier Holder PLUS Bracket Blue
SKU: BHBRC40B
Availability: InStock

$79.90

Add to wishlist

Free Shipping for this item

Premium CPR Performance Billet Alloy Hubs and Carriers designed for racing purposes. CPR Precision Race Go Kart Components offer unbeatable value and dependable durability with a design and finish to impress even the fussiest race karters.
Self-Aligning Bearing Flange/Holder/Cradle complete with 40mm Low Friction Race Bearing installed.

INCLUDES:

40mm Free-Spin high-quality bearings

40mm 3-hole carrier

40mm Bracket to suit 3-hole carrier (requires welding to project frame or chassis)

1x Countersunk High Tensile bolt & Nyloc

3x Countersunk High Tensile bolts, washers & Nylocs for mounting to chassis

3x Countersunk ANODISED washers

Holes are set 78mm apart from each other and 45mm from the centre.

This quality part matches our other anodised items.

Designed for all types of go karts.

Go Kart Countersunk Washer 8mmID Blue NEW × 3
40mm Bearing × 1
Bracket for Bearing Hanger Carrier suit AXCC408 Axle Kits × 1
Go Kart Countersunk Bolt M8 50mm long High Tensile NEW with Nyloc & Washer × 3
40mm Bearing Carrier Only Blue (Not for Individual Sale) × 1
M8 Washer (22mm OD) × 3

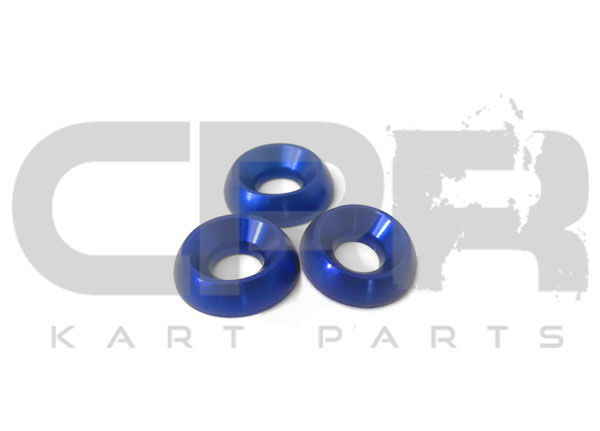

Go Kart Countersunk Washer 8mmID Blue NEW:

A = 8mm (Inner Diameter - fits 8mm Screw/Bolts)
B = 22mm (Outer Diameter)
C = 6mm (Thickness/Depth)
40mm Bearing:

A (outer diameter) = 80mm

B (Sleeve protrusion) = 19mm

C (width of bearing) = 21mm

D (Sleeve protrusion) = 8mm

E (Locator) = YES

F (Sleeve outer diameter) = 53mm

G (Inner diameter / axle shaft size) = 40mm

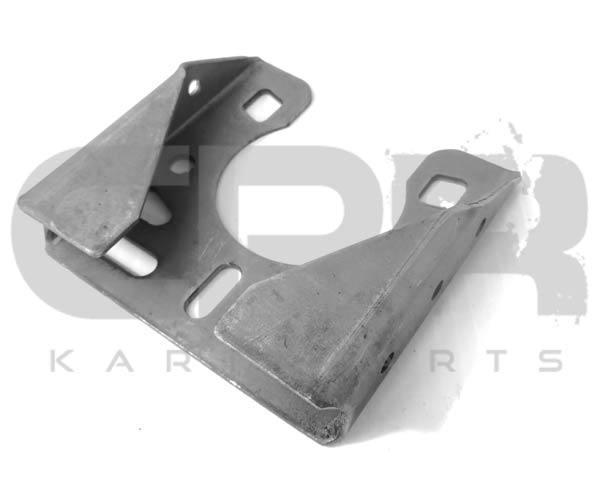

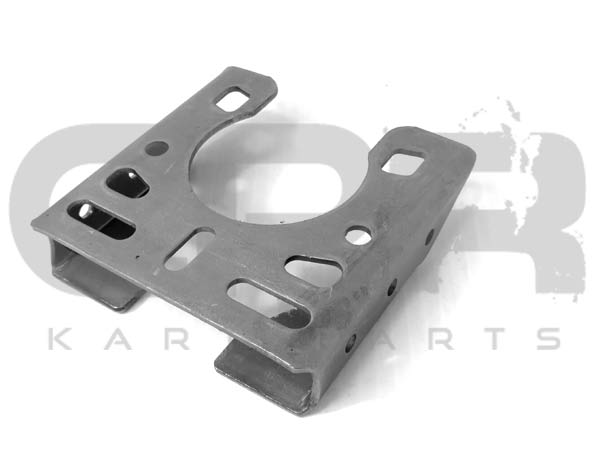

Bracket for Bearing Hanger Carrier suit AXCC408 Axle Kits:

A = 120mm Wide
B = 117mm High

C = 30mm Deep
D = 78mm PCD
E = 68mm

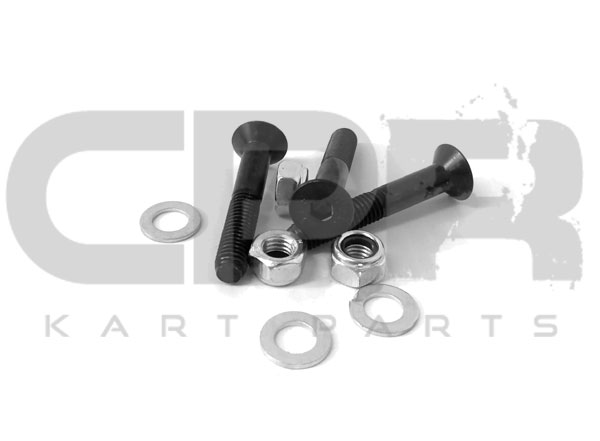

Go Kart Countersunk Bolt M8 50mm long High Tensile NEW with Nyloc & Washer:

D = 8mm

L = As per title

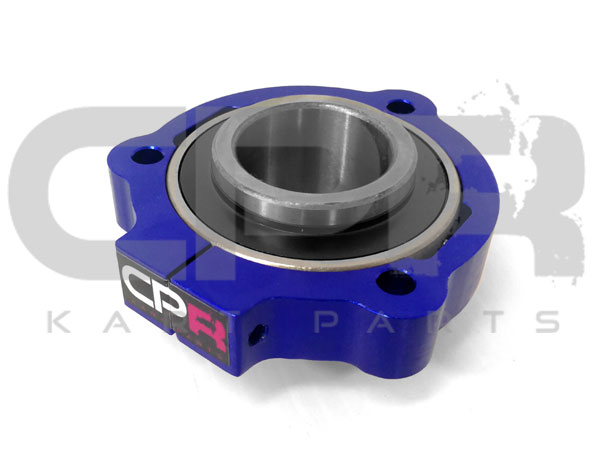

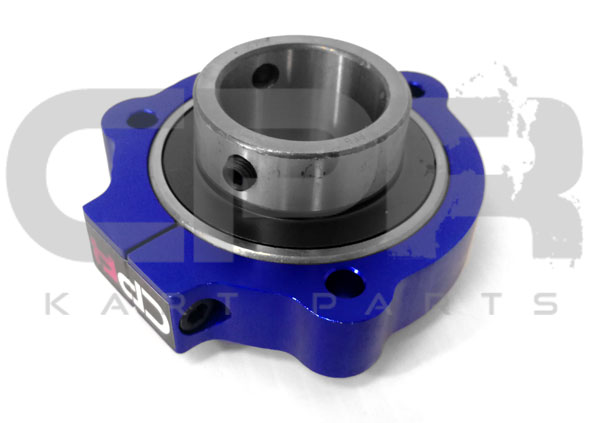

40mm Bearing Carrier Only Blue (Not for Individual Sale):

A = 110mm (Height from bottom of hanger to top of hanger total)

B = 20mm (Thickness of hanger is 20mm (5mm per side can be removed if required by linishing/filing/cutting for thin hanger brackets))

C = 100mm (Width of hanger - widest part to widest part)

D = 78mm (Holes are set 78mm apart from each other) and 45mm from the centre of the bearing.

E = 10mm (Height of centre of bottom hole to bottom of hanger or distance from centre of side hole to side of hanger)
F = 80mm (Height of top holes from bottom of hanger)
